In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board

  • 1
  • 2
  • 3

Brand Name : SMTfly

Model Number : SMTfly-F01-S

Certification : CE ISO

Place of Origin : Dongguan

MOQ : 1 Set

Payment Terms : T/T, L/C,paypal

Supply Ability : 300 sets per month

Delivery Time : 1-3 days after payment confirm

Packaging Details : each set be packed in carton boxes

Price : Negotiable

Work area : 320*320mm

Table : 2

Warranty : one year

PCB thickness : 0.5-3.5mm

Spindle speed : 60000RPM

Description : PCB Router Separator

Contact Now

In Line PCB Router Machine 0.5mm Thickness CNC Spindle Printed Circuit Board 60000rpm

Features:

1.Splitting machine can be automatically docked to the production line, saving labor costs
2.Mark point automatic alignment, intelligent correction error
3. Broken knife and sliding knife monitoring, to ensure the normal use of tools
4. Automatic tool change, no need for manual tool change.
5.Followed by dust removal, dust removal effect is good.
Speicification:
Specification
X Y Z Stroke:450*600*60mm Into the board direction: left into the right out
Depanel thickness:0-5mm Cutting range:330mm*330mm
Cutting speed:0~100mm/s adjustable Machine Size :L1800*D1100*H1600
Cutting shapes: straight, L-shaped, square, round, curved Machine Weight :约900KG
Spindle motor: German high-speed motor Host Control: Advantech Industrial Computer
Static electricity elimination: SMC Ion Generator Servo system: Fuji servo
position accuracy:±0.01mm Input Power :AC220V/50Hz
Screws/Guides:HIWIN/THK 空气消耗:10N1/Min
Track width adjustment: automatic track adjustment Inlet plate thickness :0.6mm-5mm

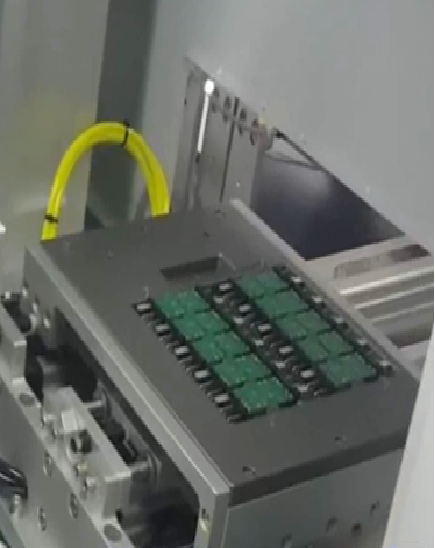

In Line PCB Router Detailed Photoes:

In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board

PCB Depanel Router Fixture:

In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board

More information welcome to contact us:

Email: sales@dgwill.com
