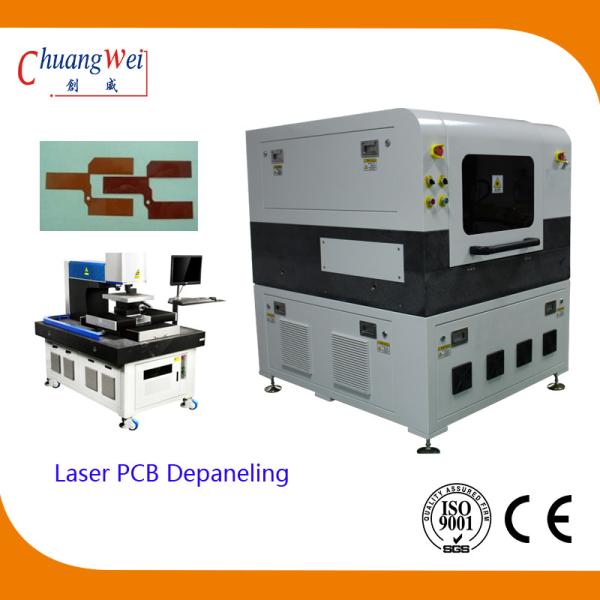

355nm Laser Depaneling Machine Printed Circuit Board UV Cutting Machine

  • 1
  • 2
  • 3

Brand Name : Chuangwei

Model Number : CWVC-5L

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 1000 set / year

Delivery Time : 3 work days

Packaging Details : plywood case

Max PCB size : 600*460mm

Weight : 1600kgs

Laser : USA Optowave

Cooling : Water

Name : Laser UV Cutting Machine

Contact Now

Printed Circuit Board PCB Depaneling Laser UV Cutting Machine

The demand for small, hand-held electronics with more features is driving smaller, thinner, and more dense flex and rigid printed circuit boards (PCBs).

Depaneling, or the laser singulation of printed circuit boards, offers numerous advantages to a traditional bit router or mechanical saw, including:

  • Non-contact cutting process to eliminate stress to the PCB and its delicate components
  • Reduced micro-cracks and reduced delamination for longer PCB life
  • Greater flexibility to cut unusual shapes
  • Faster set up for smaller production batches
  • More consistent laser accuracy over the life of the tool
  • Narrower cuts and less dust generated during the laser singulation process
  • Fewer burrs

Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

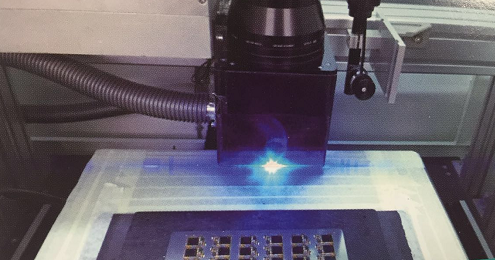

High Effective Laser Source

355nm Laser Depaneling Machine Printed Circuit Board UV Cutting Machine 355nm Laser Depaneling Machine Printed Circuit Board UV Cutting Machine
