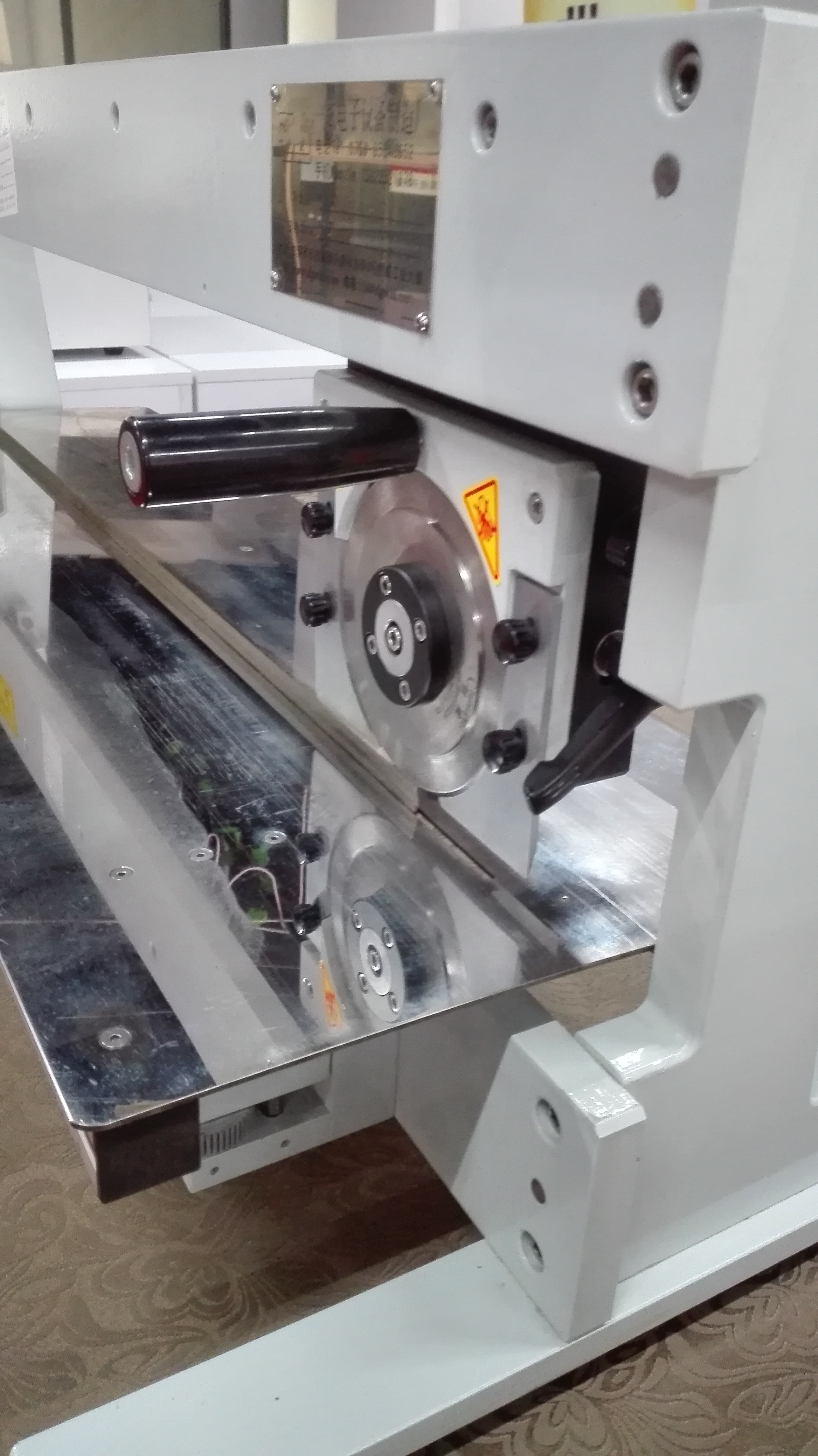

Manual PCB Depaneling Machine With 700mm Length Linear Blade
Manually Cutting PCB Separator (CWV-1M-700) Sepcification:
| Size | 1027x400x436mm |
| The separate size | 700mm |
| Minimize Speed | Manual |
| Minimize thickness | 0.6-3.5mm |
| Machine Weight | 45kg |
Manually Cutting PCB Separator (CWV-1M-700) Features :

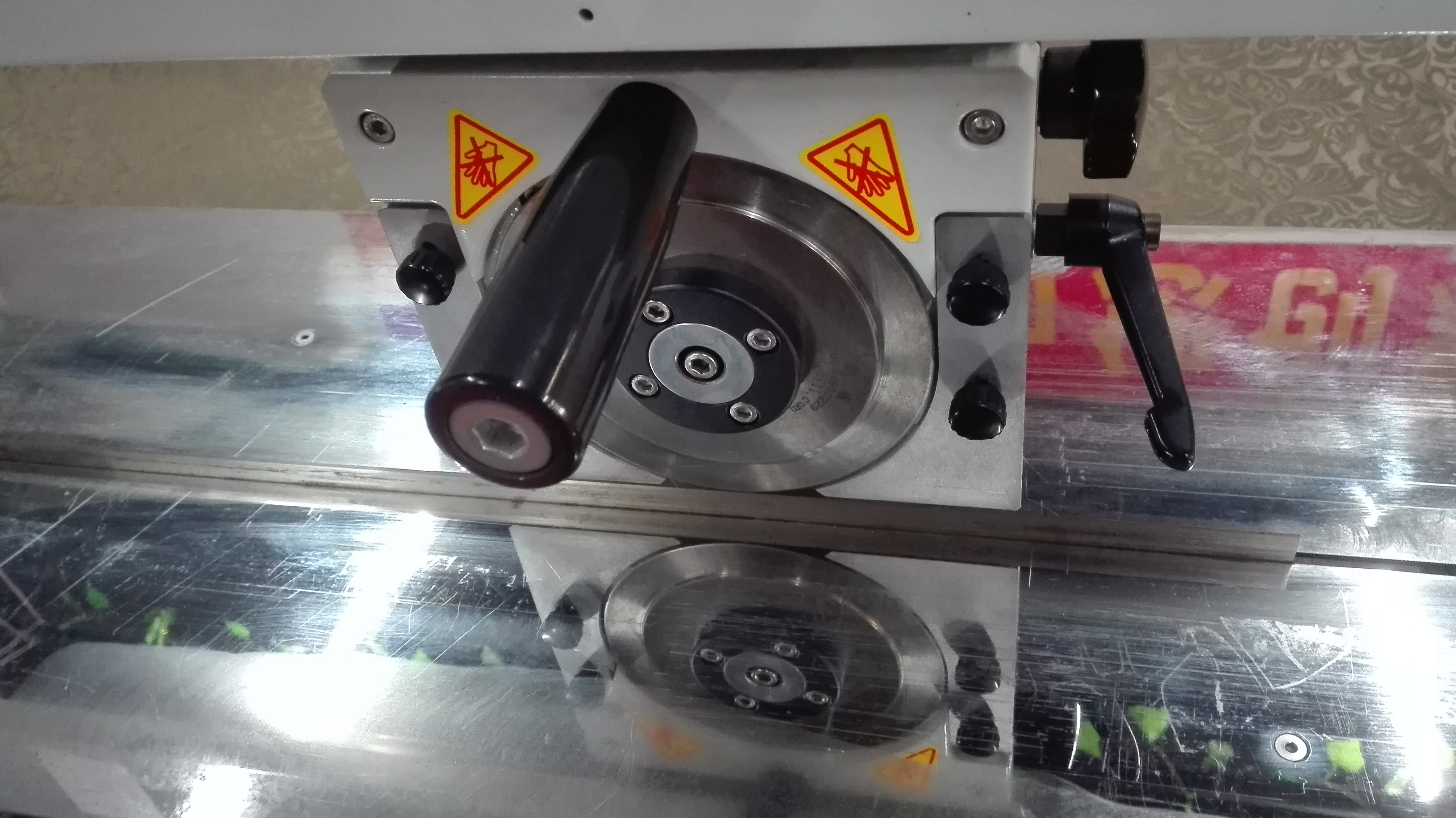

1, Round knife, manually cutting against lower linear knife,for reduced stress
2, Separate pre-scored PCB assembly without stress on either PCB or component
3, Separating speed is adjusted by handwheel
4, Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6, Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable.
7, Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
