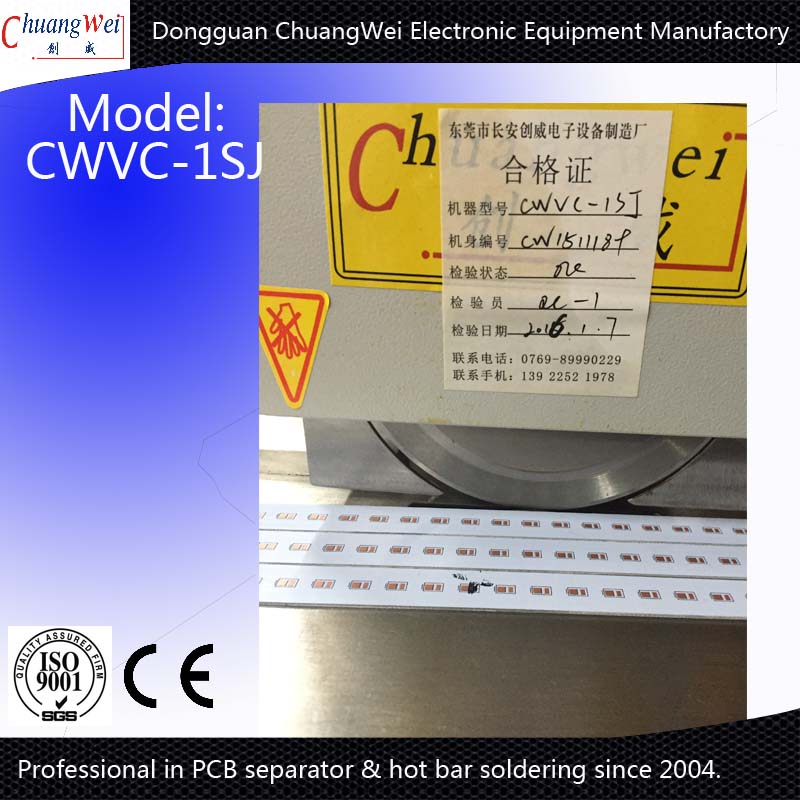

Pre-scored PCB Separator V-cut Pcb Depaneling For Led Strip CuttingSpecification:
| Model | CWVC-1SJ |
| separation Length (mm) | 330 |
| separation Speed (mm/s) | 0~400 |
| Cutting Thickness (mm) | 1.0~3.5 |
| Power Supply (V) | 110/220 |
| PCB separator machine Size (mm) | 420*280*400 |
| PCB separator machine Weight (Kg) | 25 |
| Blade Hardness (HB) | 540~567 |
| Blade Hardness (HRC) | 60~63 |
| Blade working life for metal (Year) | 0.5 |
| Blade working life for PCB (Year) | 1 |
| Guarantee (Year) | free for one year |
| Delivery (Day) | within three days after receive the payment |
| Min. Order (Set) | 1 |
| Ability (Set) | 1000 sets/ year |
Detailed Product Description:
1 . For electronics, cell phones , computers , PCB , FPC ( flexible printed circuit board )
2 . Mold make of SKH-11 Steel , Blade is SKH-9 ( From Japan ) , Rigorous Job !
pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling
Technical characteristics:
1 . Structural precision, the load evenly , to eliminate internal stress
2 . Safe , easy to operateyyy
3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
Feature:
- All PC boards with a V-cut are suitable for this machine.
- The machine is light and occupies little space. It is very easy to operate and maintain.
- Cutting by machine can reduce stress and prevent the welding point from cracking.
- The distance between the upper and lower cutters can be adjusted with a minimum of 0.03mm, which can solve the problem of the depth of the V-cut.
- We can produce special machines for PC boards of special specs.
- Thicknesses to be cut: 0.6-2.6MM
- Height limit for components above the base plate: 30MM
- Height limit for components under the base plate: 20MM
- Max width to be folded: 290MM; unlimited length to be folded.
Why choose us
| 1.Engineers available to service machinery oversea. | Engineers are available to be sent to freign countries to do machinery training and offer technical support.
|
| 2.Mature technique & forerunner to process makes high quality machinery.
| As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
| 3.Effective customer service. pcb router machine
| All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
|
| 4.One year warranty for the machines except accessories. b router machine
| Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
|
| Our mission:
| Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
| Our Vision:
| PCB industry to become the world's leading solution providers PCB separator. pcb router machine
|
